Attiny85 Flash Player

Credits:
1. https://learn.adafruit.com/trinket-audio-player/overview for her library. I am not using Adafruit trinket player .ino code but rather a basic code developed from below link. Adafruit also use an older version of Winbond memory Winbond 25Q80BV.
2. http://www.technoblogy.com/show?QBB Here is where I learn basic to play music from Attiny85

I am going into external Flash memory because using EEPROM is limited in size. 512KB is about the max in 2017 and it is way more expensive. My earlier post on SD player is big in term of physical size. I would want something similar to Attiny85 dip size.

Using Flash library for Attiny85, I choose AdaFruit over SPIFlash library because of AdaFruit very small footprint. AdaFruit sector erase and page write good enough for me.  I do have to make changes to AdaFruit library because I am using a different model of Winbond Flash. I am using the following parts

Hardwares:
1. Attiny85 Dip.
2. SD Card adapter with soldered on DIP pins
3. Winbond W25Q64FV. It has 8 MB of memory which is enough for my 20 seconds music. A music that I intend to use on her Barney stuffed toy. If you consider 8000 bytes a second, you can play about 15 min of music on W25Q64FV.
4. A led for testing and status. There is not enough pins on Attiny85 for a led with 2 SPI device (W25Q64FV and microSD).
5. A speaker 2 pin. I made one myself from old toy. You can made one from any toy that produce sound.
6. 2 x 1.5 AA batteries. Heavy duty.

Optional:
1. A transistor N2222 and 100 Ohm resister to amplify the sound.

Libraries:
1. petit_fatfs.h (I have made changes on it, please see my earlier post on Attiny85 SD player
2. Adafruit_TinyFlash.h (I have make changes to work for my newer Winbond flash memory)

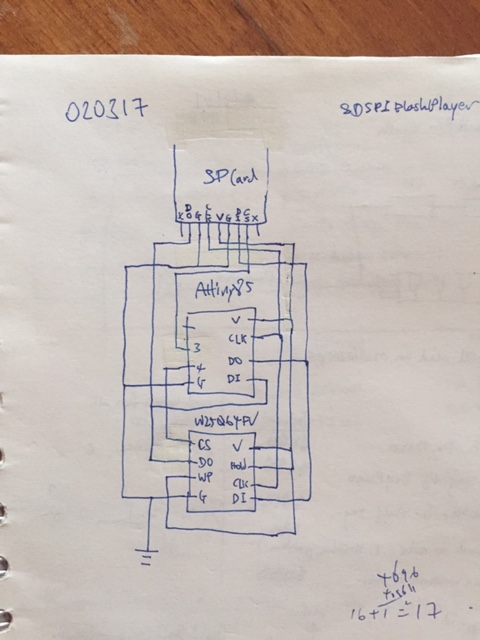

Circuit:
This is the minimum components. I have added a led connected to Attiny85 PB0 (DI) pin and to the ground. It is useful to have only 1 led to see the status of the operation or testing. PB0 is also used for the SPI operation. But you can switch it to output for the Led when you need it and turn it back to SPI  function. See attached source code below.

The circuit consists of 2 main function. 1) To read music data from microSD card in the SD card adapter and write to the W25Q64FV external Flash memory. 2) To read music data from W25Q64FV and play the speaker.

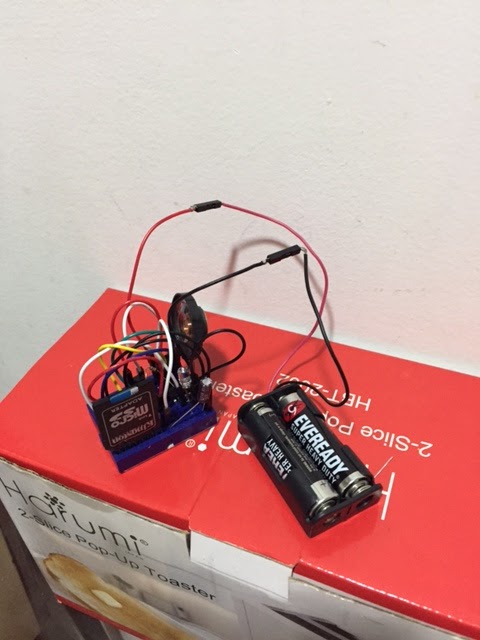

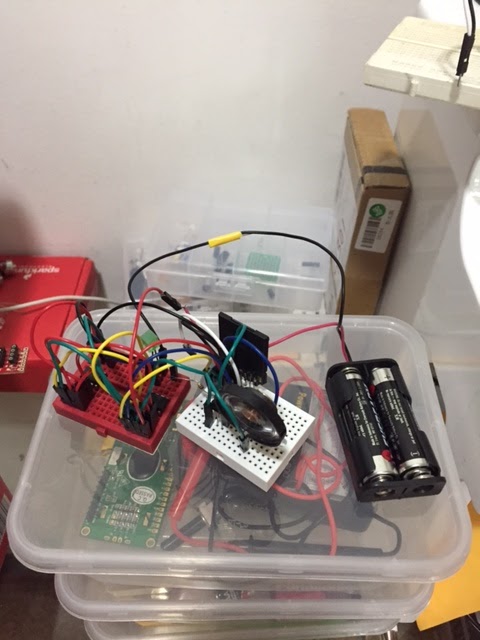

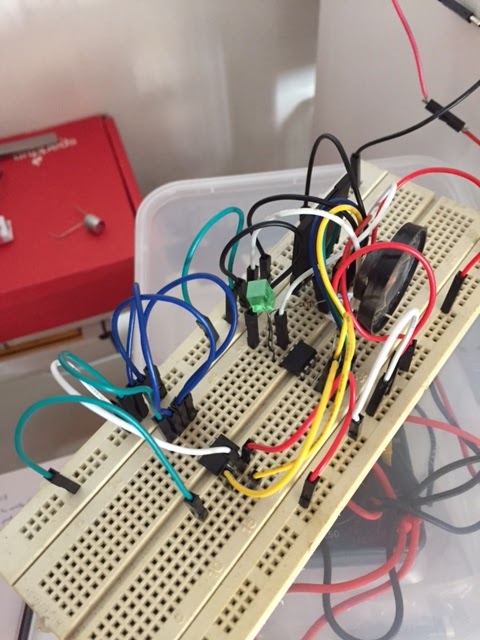

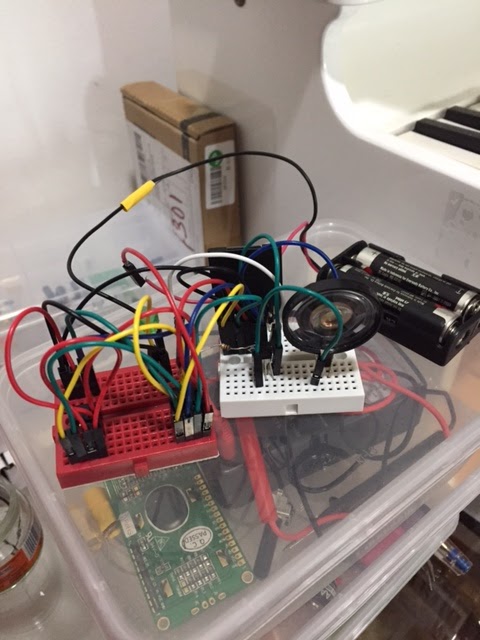

The red mini breadboard has the external flash memory W25Q64FV and Attiny85.

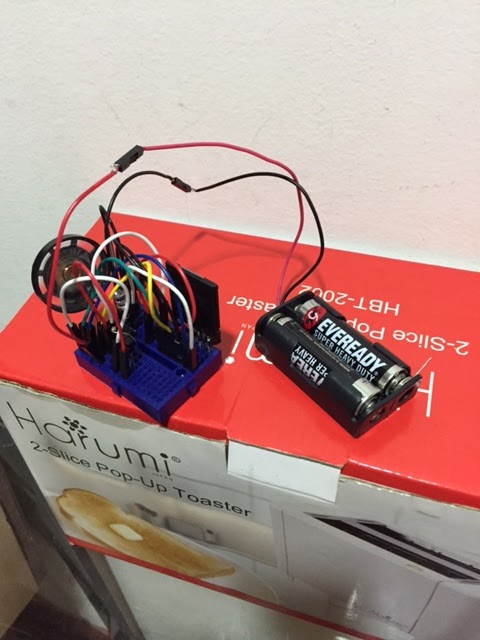

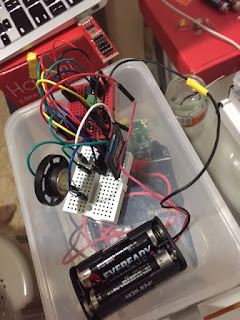

The mini white breadboard has the SD adapter and speaker with transistor.


In the video, I am playing Barney I Love You which I intend to put in my daughter Barney toy. My work in electronic is driven by my daughter desire. And when I ask her if you want a barney to sing, she said, "I want a Barney also dance with me." Don't think it is possible like reaching for the moon for your daughter. :)


Source code:

a) I have changed the Adafruit_TinyFlash.h near the top
  Adafruit_TinyFlash(uint8_t cs = 3); // used to be 3
to
  Adafruit_TinyFlash(uint8_t cs = 4); // used to be 3
3 is for SD card while 4 is for Flash during the write.

b) I have change the deviceID in Adafruit_TinyFlash.cpp begin function to 0x16 (see data sheet)
return ((manID == 0xEF) && (devID == 0x16)) ? CHIP_BYTES : 0L;

c) I have lengthen the erase wait time in eraseSector function
if(!waitForReady(10000L)) return false; // Datasheet says 400ms

a) When playing, I have changed the Adafruit_TinyFlash.h near the back to
  Adafruit_TinyFlash(uint8_t cs = 3); // used to be 3
b) I disconnect the cs line for SD card at PB3. Move the cs line for Flash from PB4 to PB3.

Comments:
I find EEPROM easier to program than external Flash memory. Flash needs to be erase before you can write on it. EEPROM does not have this requirement. EEPROM has i2C which is only 2 wire  wire Flash and SD need 4 wires SPI. Only thing is that EEPROM has very limited memory size at about 125k byte at about $5. Flash has about 8M byte at $1.50. And SD has 8G byte at $7.50. For my purpose on a small toy, I would go for Flash at the time being.

Next I will be making 1 wire LCD. It has been make but I would like to study the 595 ic used in it and the these future projects in my spare time.

Far Future Project:
1. Bluetooth to change toy music from iPhone or android
2. Play midi note to Korg TinyPiano
3. Play midi song in Korg TinyPiano and MicroPiano using Attiny85 and W25Q64FV.

Monday, 20 February 2017

Attiny85 Eeprom Player

After doing a SD player, I continue to do a EEPROM player. First, I use what I learn in  my earlier post to build a SD to EEPROM WRITER using an Attiny85. Then, I turn on PWM to play the music from the EEPROM. So it is possible to use I2C and SPI together in Attiny85. I2C is used to talk to the external microchip memory 24LC256 DIP while SPI is used to talk to the SD card. The trick is to use beginTiny before each write (see source code below). The work is motivated by my 3 years old daughter who want a good Barney song in her Barney stuff toy. Next I will move to Winbond Flash with Attiny85 which I could hold the whole song.

Credit to :
1. http://www.jechavarria.com/2013/06/28/components-i-usually-use-ii-24lc256-i2c-eeprom-memory/   that i learn there need a delay of 5ms for each write. Once i got it, the rest is easy.
2. https://www.reddit.com/r/arduino/comments/19typ5/attiny85_with_external_i2c_eeprom/ that i learn to start with the circuit

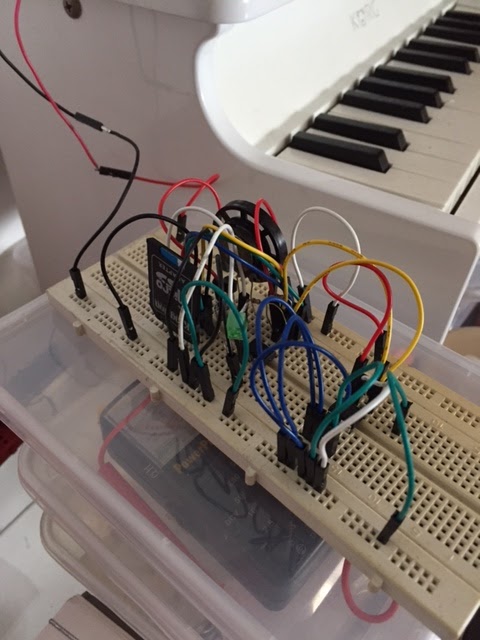

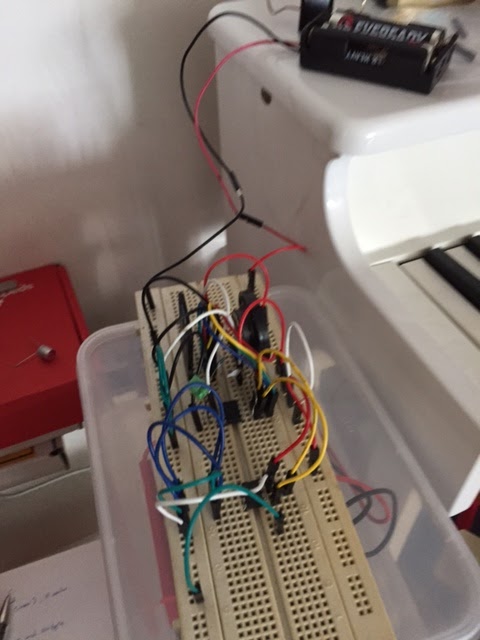

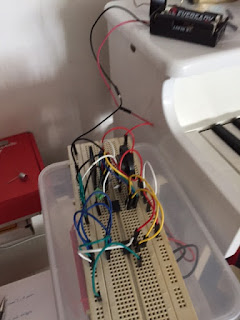

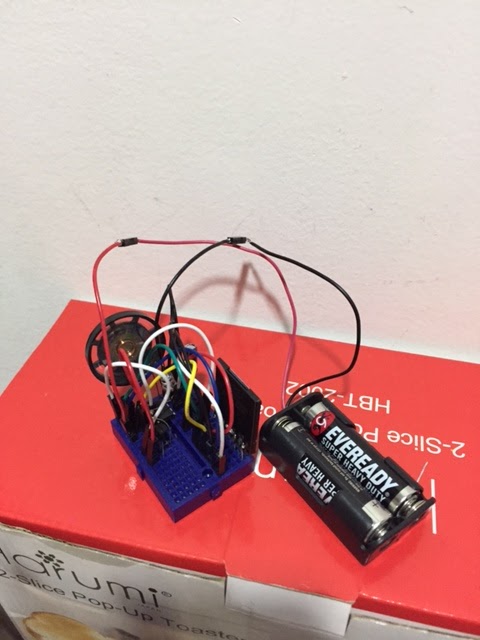

Here is the photo:




The video:

https://youtu.be/MUv98w__nwI

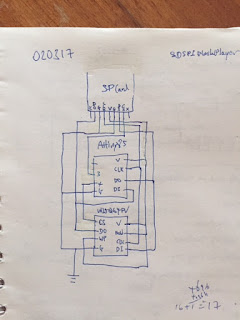

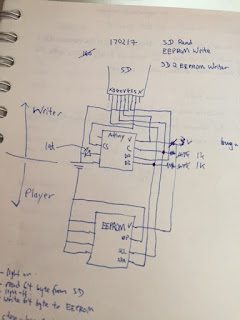

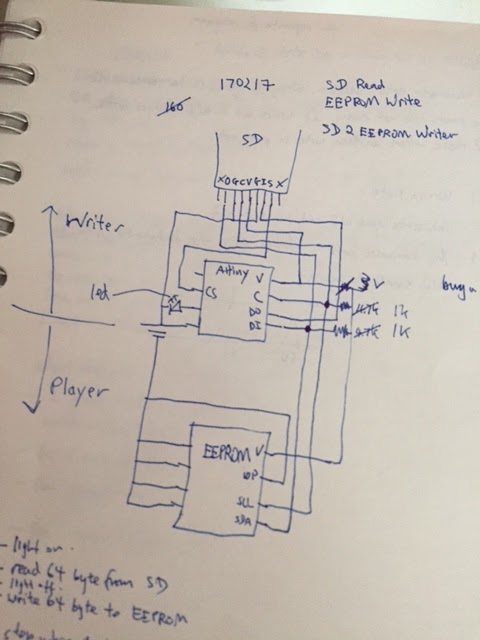

The circuit:
I am using 2 x 1k ohm resistor to pull up insteads of the 4.7k ohm resister as recommended in the link above.


The source:
Writer - https://drive.google.com/open?id=0B1Ozs0W50qCpekFoMm14eDl1bVU
Player - https://drive.google.com/open?id=0B1Ozs0W50qCpWnVwSk5ZZ2tyRWc

Note:
I am using TinyWireM.h and make the following changes. As I am writing and reading 64 bytes at one time, I change the buffer to 67 in USI_TWI_Master.h below. And I find I do not need to change the clock speed from 1000.0 kHz to 8Mhz which my Attiny85 is running. It still runs!

#define USI_BUF_SIZE    67  // bytes in message buffer

#define SYS_CLK   1000.0  // [kHz] Default for ATtiny2313








Sunday, 12 February 2017

Attiny85 SD Player - Redo of Chan 2009 SD Wav Player in Arduino IDE

Chan 2009 player has C and assembly code. I try to redo so that only I need only the Arduino IDE and Attiny85 with arduino or a USB tiny programmer. You need only to upload an .ino file to Attiny85 for it to play music from a SD card.

Credit for internet knowledge that lead to my work:
1. https://harizanov.com/2012/05/toying-with-attiny84-and-sd-card-in-arduino-ide/ for a link to the wrapper.
2. http://gizmosnack.blogspot.sg/2013/04/tutorial-usart-and-avr.html for spi pin connection
3. http://elm-chan.org/works/sd8p/report.html for the sd code
4. https://learn.adafruit.com/adafruit-wave-shield-audio-shield-for-arduino/overview for the double buffering code

Hardware required:
1. Attiny85
2. SD card adapter

Optional
1. 200 uF capacitor to remove noise
2. a npn transistor to amplify the sound
3. a 100 ohm resistor
4. a push button

The above components are optional. You can leave them out in the circuit diagram below. It will still work.

Difficulties that I encounter:
1. There is no sound. I was struck at this problem for a day. And I found it is because of a short circuit in DI and CS port of the SD adapter. I remove the bad solder and there is sound.
2. Wrong connection from SD to Attiny85. SD DO pin (second pin from the left) should go to Attiny DI pin (PB0). SD DI pin (third pin from the right) should go to Attiny DO pin (PB1).

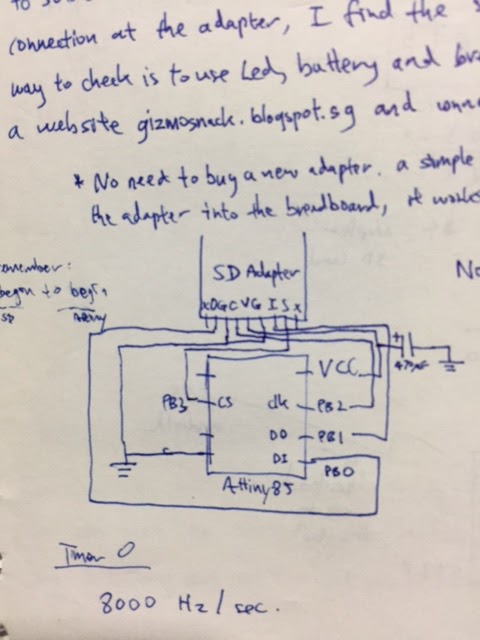

Here is the circuit diagram:


Some photos:







Here is the software .ino Please note the wav file is name love.wav in the source. Please get your own wav file by using iTune etc to produce a 8 bit 8000 hz wave file.

Friday, 27 January 2017

Attiny85 midi music in a Clock

My first music electronic player that can play 4 voices.

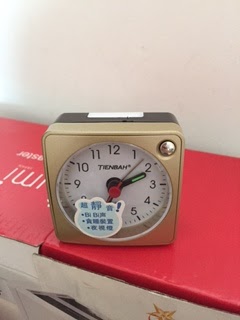

The music clock part list:

1 x Attiny85
2 x AG13 Batteries 1.5 volt each
2 x 100 Ohm resistors
2 short wires to connect to the clock button and speaker
1 x analog alarm clock (The clock already have the speaker and push button)

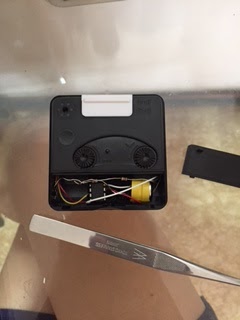

The circuit for Attiny85.
